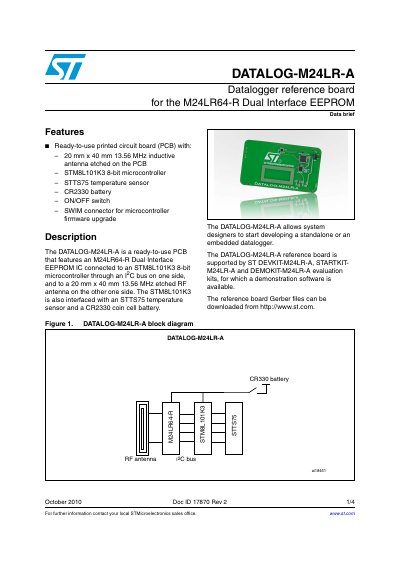

The DATALOG-M24LR-A is a datalogger reference board from STMicroelectronics. It includes an M24LR64-R Dual Interface EEPROM IC, STM8L101K3 8-bit microcontroller, STTS75 temperature sensor, CR2330 battery, ON/OFF switch and SWIM connector. It is designed for developing standalone or embedded dataloggers.
The ANT5-M24LR-A is a ready-to-use printed circuit board (PCB) designed for evaluating the M24LR64-R Dual Interface EEPROM IC in a multibank configuration. The board features four M24LR64-R ICs connected in parallel, presenting a total of 256 Kbit of memory split into four banks of equal size.
| Memory Configuration | 4 x 64 Kbit multibank |
|---|---|
| IC Type | M24LR64-R Dual Interface EEPROM |
| Antenna Frequency | 13.56 MHz |
| Antenna Dimensions | 45 mm x 75 mm |
| Total Memory | 256 Kbit |
It is a ready-to-use printed circuit board featuring four M24LR64-R ICs connected in parallel.
The etched RF antenna on the PCB measures 45 mm x 75 mm.
The antenna operates at a frequency of 13.56 MHz.
