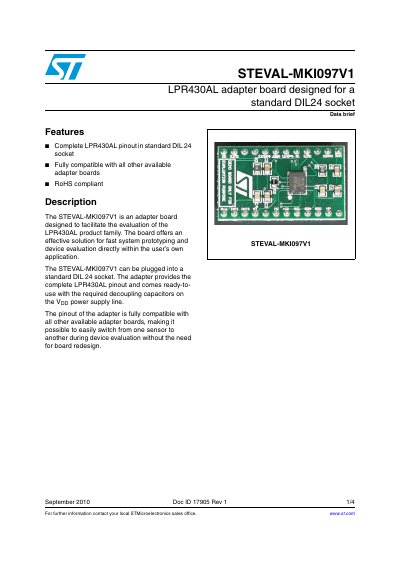

This datasheet introduces the STEVAL-MKI097V1 LPR430AL adapter board, designed for a standard DIL24 socket. It offers a complete LPR430AL pinout, is fully compatible with all other available adapter boards and complies with the RoHS standard.
The STEVAL-MKI097V1 is an adapter board designed to facilitate the evaluation of the LPR430AL product family. It is designed to be plugged into a standard DIL 24 socket and provides the complete LPR430AL pinout.
The board is fully compatible with all other available adapter boards, allowing for easy switching between sensors during device evaluation without requiring board redesign. It comes ready-to-use with the required decoupling capacitors on the Vpp power supply line.
| Socket Type | standard DIL24 socket |
|---|---|
| Compliance | RoHS compliant |
| Document Revision | Rev 1 |
The board is designed to facilitate the evaluation of the LPR430AL product family.
The adapter can be plugged into a standard DIL 24 socket.
