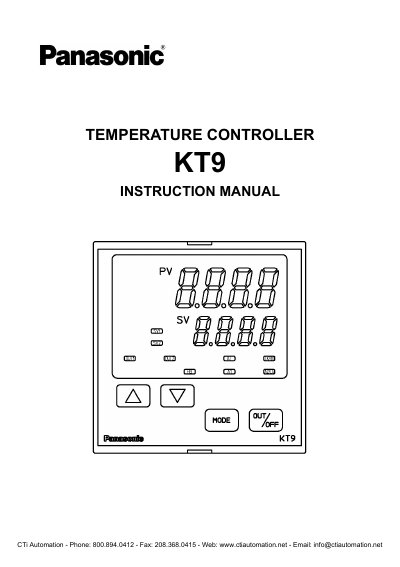

This manual contains instructions for the mounting, functions, operations and notes when operating the KT9.
The Panasonic KT9 is a programmable temperature controller designed to be installed in a control panel. It features selectable input types (thermocouple, RTD, DC current/voltage) and multiple output options including relay contacts, non-contact voltage, and DC current. The device supports PID auto-tuning and includes optional heating/cooling control functions.
| Supply voltage | 100 to 240VAC or 24V AC/DC |
|---|---|
| Input type | Multi-input (Thermocouple, RTD, DC current and DC voltage) |
| Control output (OUT 1) | Relay contact, Non-contact voltage, or DC current |
| Alarm output | A1 output or A1 + A2 output |
The instrument should be used under Overvoltage category I, Pollution degree 2, with an ambient temperature of 0 to 50°C (32 to 122°F) and humidity of 35 to 85% RH.
A time-lag fuse rated at 250V AC and 2A is recommended.
Yes, OUT2 can be configured for Heating/Cooling control if selected in the model specifications.
