This document describes the installation steps of LNS-2GI lens housing, including cutting the pipe, gluing the lens housing, running the fiber optic cable, and tightening the lens.
This document provides installation instructions for the LNS-2GI lens housing. It details how to prepare a 1 1/2" pipe by cutting it back from flush to the wall and gluing the housing into place.

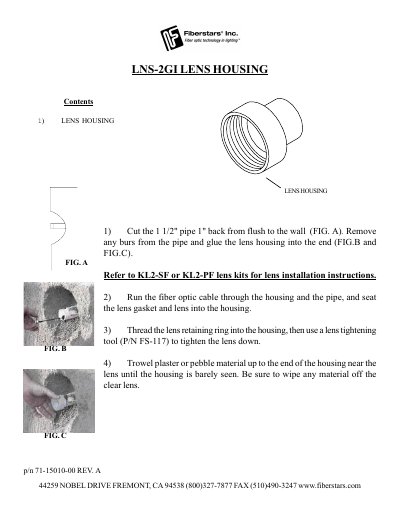

The guide further explains running fiber optic cable through the housing, seating the gasket and lens, tightening with tool P/N FS-117, and finishing the installation by troweling plaster or pebble material around the housing end.
You must cut the 1 1/2" pipe back 1" from flush to the wall.
You need to use a lens tightening tool with part number FS-117.
You should trowel plaster or pebble material up to the end of the housing.
