This document is a user manual specification for the Consumer 2004-AS™, providing information on the product's construction, electrical parameters, lamp type, warranty, and control sequence.

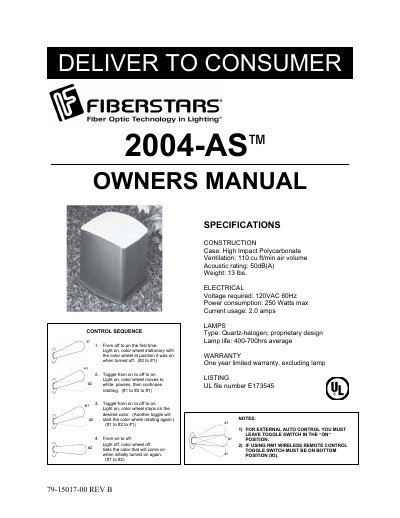

The document serves as an owner's manual for the Fiberstars 2004-AS illuminator, detailing its operation sequences, construction materials, and electrical requirements. It explains how the color wheel behaves when toggled on or off to set specific colors.
The guide also includes critical safety warnings regarding ventilation to prevent overheating, along with a troubleshooting section for common issues such as no light output, unit shutdowns, remote control failures, and insufficient brightness.
| Case Material | High Impact Polycarbonate |
|---|---|
| Air Volume | 110 cu ft/min |
| Acoustic Rating | 50dB(A) |
| Weight | 13 lbs. |
| Voltage Required | 120VAC 60Hz |
| Power Consumption | 250 Watts max |
| Current Usage | 2.0 amps |
| Lamp Type | Quartz-halogen |
| Average Lamp Life | 400-700hrs |
Lack of ventilation can cause the unit to overheat, shorten lamp life, and damage the unit.
The product comes with a one-year limited warranty, which excludes the lamp.
If you hear the fan running but there is no light, the lamp has probably failed and needs replacement.
