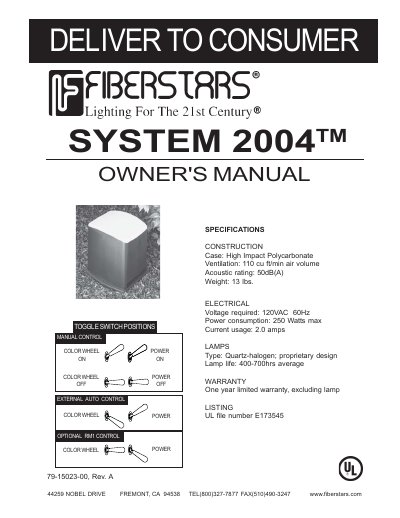

This is the owner's manual of Fiberstars's System 2004TM illuminator
The Fiberstars System 2004 is a pool illuminator featuring a high-impact polycarbonate case and a proprietary quartz-halogen lamp design. It operates on 120VAC 60Hz power with a maximum consumption of 250 Watts and includes an optional external auto control and color wheel. The unit requires proper ventilation to prevent overheating and ensure a lamp life of 400-700 hours on average.
| Case Material | High Impact Polycarbonate |
|---|---|
| Voltage Required | 120VAC 60Hz |
| Power Consumption | 250 Watts max |
| Current Usage | 2.0 amps |
| Lamp Type | Quartz-halogen |
| Lamp Life | 400-700hrs average |
| Warranty | One year limited warranty |
The lamp has probably failed and needs to be replaced with Fiberstars part #HI-111.
The air vents may be blocked, causing the unit to overheat. Check the vents and remove any obstructions.
The receiver module in the unit is defective and requires replacement by a qualified service company.
