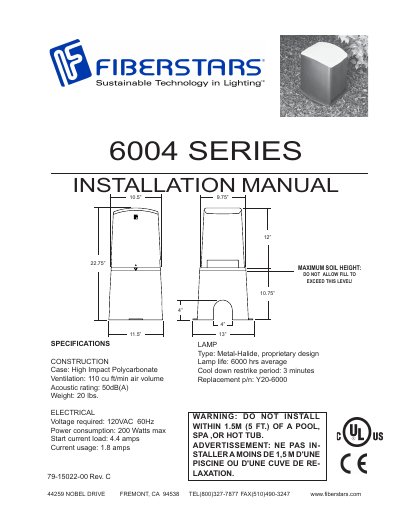

This document is the installation manual for the Fiberstars 6004 series. It introduces the characteristics of the product, including the type of lamp, voltage, power, life, weight, etc.
The document serves as an installation guide for the FiberStars 6004 Series Metal-Halide fiber optic illuminator. It details safety warnings regarding pool proximity, required conduit types, and specific steps for assembling the port with up to 450 fibers.
Electrical specifications are provided, including a requirement for 120VAC 60Hz power and maximum consumption of 200 Watts. The guide covers wiring configurations for manual control, external auto control (Jandy Aqualink compatible), and optional RM-6000 wireless remote systems.
| Lamp Type | Metal-Halide, proprietary design |
|---|---|
| Lamp Life | 6000 hrs average |
| Cool down restrike period | 3 minutes |
| Voltage required | 120VAC 60Hz |
| Power consumption | 200 Watts max |
| Maximum fiber count | 450 fibers |
Do not install within 1.5 meters (5 feet) of a pool, spa, or hot tub.
The port assembly supports a total fiber count of 450 or less.
Yes, it can be connected to a second relay in the control's sub panel for systems like Jandy Aqualink.
