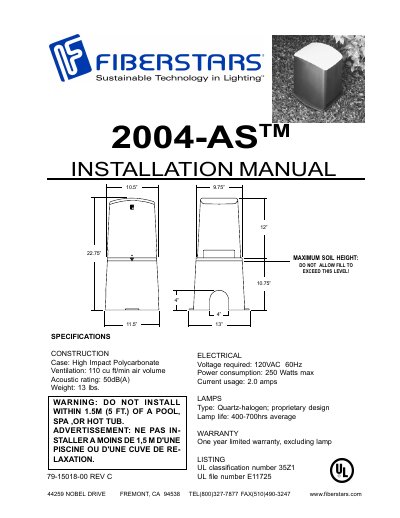

Fiberstars 2004-AS Illuminator Installation Manual

This manual contains instructions on operating, maintaining, and installing the Fiberstars 2004-ASTM series of projection lights.

Brand: FIBERSARS
Category: Other products
Document type: Installation Guide
Language: English
Pages: 4
File format: PDF
File size: 1 MB
Published: 03 August, 2012
Updated: 30 September, 2023
Model: 2004-AS
MD5 checksum: C57195502B57B9920FA818DEF3FD150D
PDF: Fiberstars 2004-AS Illuminator Installation Manual PDF

About this manual

This manual provides installation guidelines for the Fiberstars 2004-AS illuminator, covering site preparation, electrical connections, and mounting procedures. It specifies that the unit requires 120VAC 60Hz power and includes warnings regarding soil height and ventilation to prevent overheating.

What's inside

Specifications
Electrical Connections
Installation Guidelines
Port Assembly
Fiber Termination
Wiring Diagrams
Remote Control
Synchronization

Specifications

Voltage required	120VAC 60Hz
Power consumption	250 Watts max
Current usage	2.0 amps
Lamp life	400-700hrs average
Maximum fiber count	400 fibers

Frequently asked questions

What is the maximum number of fibers for this illuminator?

The total fiber count of all fiber tubings must be 400 or less.

Can this unit be used with a wireless remote?

Yes, the optional RM1 wireless remote control is intended for use with the 2004-AS as a standalone unit.

What type of lamp does this illuminator use?

It uses a proprietary design Quartz-halogen lamp.

Download PDF (1 MB)
