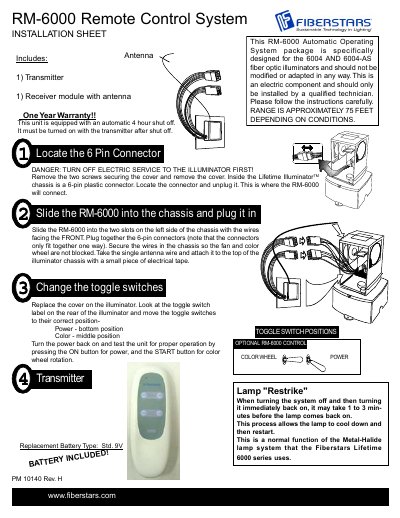

Fiberstars RM-6000 Remote Control System Installation Sheet

Installation sheet for RM-6000 Remote Control System, providing instructions on how to install the RM-6000 controller and important precautions.

Brand: FIBERSARS
Category: Other Electronics
Document type: Installation Guide
Language: English
Pages: 2
File format: PDF
File size: 115 KB
Published: 03 August, 2012
Updated: 28 September, 2023
MD5 checksum: 58EDDF947F0145104396EA6E2A9CDA27
PDF: Fiberstars RM-6000 Remote Control System Installation Sheet PDF

About this manual

This document provides installation instructions for the Fiberstars RM-6000 Automatic Operating System package, which is designed for use with 6004 and 6004-AS fiber optic illuminators. The system includes a transmitter and a receiver module with an antenna and features an automatic 4-hour shut-off function. Installation requires connecting a 6-pin connector inside the illuminator chassis and securing the antenna wire to the top of the chassis.

What's inside

Installation
Wiring
Toggle Switches
DIP Switches
Code Adjustments
Lamp Restrike
Warranty

Specifications

Range	Approximately 75 feet
Shut off time	4 hour
Connector type	6-pin plastic connector

Frequently asked questions

What illuminators is the RM-6000 designed for?

It is specifically designed for the 6004 AND 6004-AS fiber optic illuminators.

Who should install this system?

It should only be installed by a qualified technician.

What happens when the lamp is turned off and back on immediately?

It may take 1 to 3 minutes before the lamp comes back on to allow the lamp to cool down.
