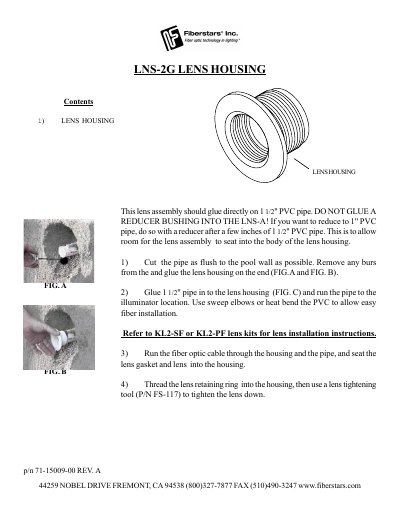

LNS-2G Lens Housing
The document describes the Fiberstars LNS-2G lens housing assembly designed for use with 1 1/2" PVC pipe. It specifies that the lens should be glued directly onto the pipe without a reducer bushing inside the housing, allowing room to seat properly.
Installation involves cutting the pipe flush to the pool wall, gluing the housing, running the fiber optic cable through the assembly, and securing the lens using a retaining ring tightened with tool P/N FS-117. Users are directed to separate kits (KL2-SF or KL2-PF) for specific lens installation steps.
The lens assembly must be glued directly onto a 1 1/2" PVC pipe.
You must use a lens tightening tool with part number FS-117.
