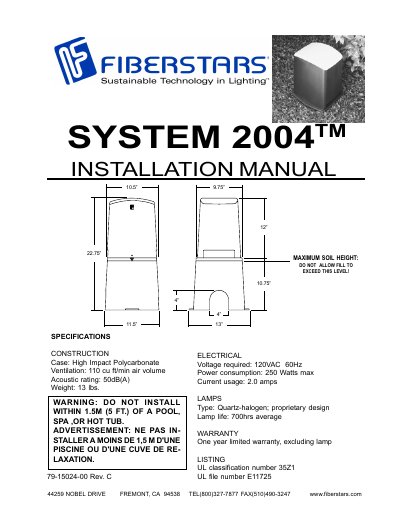

FiberStars System 2004TM Illuminator Installation Manual

This manual introduces the connection, installation and use of Fiberstars System 2004TM.

Brand: FIBERSARS
Category: Other
Document type: Installation Guide
Language: English
Pages: 4
File format: PDF
File size: 583 KB
Published: 03 August, 2012
Updated: 30 September, 2023
MD5 checksum: FDE81B31CABD46DB9AD5AAABFBC285ED
PDF: FiberStars System 2004TM Illuminator Installation Manual PDF

About this manual

This document provides installation instructions for the FiberStars System 2004TM illuminator. It details electrical requirements, including a 120VAC 60Hz power supply, and specifies the maximum power consumption of 250 Watts. The guide includes critical safety warnings, such as maintaining a minimum distance of 1.5 meters from pools, spas, or hot tubs.

What's inside

Electrical Requirements
Installation Guidelines
Port Assembly
Fiber Termination
Lamp Replacement
Warranty Information

Specifications

Voltage required	120VAC 60Hz
Power consumption	250 Watts max
Current usage	2.0 amps
Lamp life	700hrs average
Weight	13 lbs.
Warranty	One year limited warranty

Frequently asked questions

What is the minimum distance required from a pool or spa?

Do not install within 1.5 meters (5 feet) of a pool, spa, or hot tub.

What is the maximum number of fibers for this illuminator?

The maximum capacity is 400 fibers; more than 400 requires a second illuminator.
