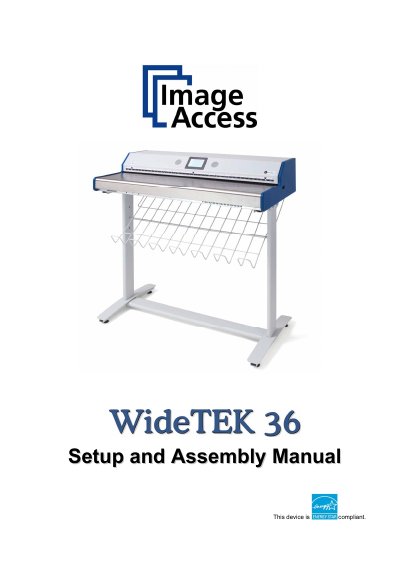

This manual describes the assembly and setup process for the WideTEK 36 scanner.
The document serves as a comprehensive guide for the assembly and initial setup of the Image Access WideTEK 36 flatbed scanner. It is intended for technical staff or 'Power user' level access and covers mechanical installation, including the floor stand, power connection, and startup procedures.
The manual details the software configuration via the Scan2Net web-based interface, including network settings, firmware updates, and image adjustments like white balance and brightness correction. Additionally, it provides instructions for cleaning components, performing scan tests with specific targets (CSTT and IT8), and recovering factory defaults.
| Maximum Document Width | 38 inch / 965 mm |
|---|---|
| Scan Width | Max. 36 inch / 915 mm |
| Optical Resolution | 1200 x 600 dpi |
| Sensor Type | 3 linear CCD, encapsulated and dust-proof |
| Scan Modes | 1bit Black/White, 8bit Grayscale, 24bit Color, 8bit indexed |
| Light Source | Two lamps with 130 white LEDs each |
| Operating Temperature | +5 to +40° Celsius |
| Voltage | 100-240V AC |
It is recommended to always use the WideTEK 36 in combination with the floor stand.
The total dimensions including the floor stand are 1070 x 1094 x 555 mm (H x W x D).
The total shipping weight, including the transport box and stand, is 96 kg.
