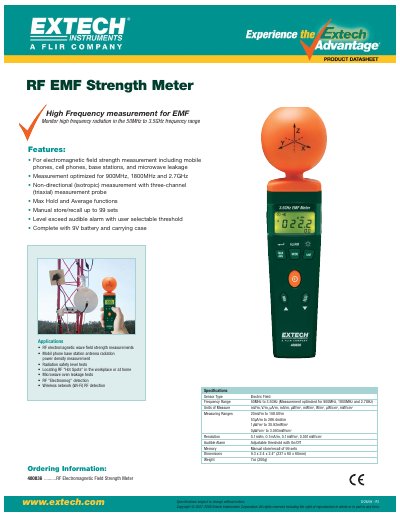

Extech 480836 RF Electromagnetic Field Strength Meter is a meter for measuring electromagnetic field strength. It can measure the electric field strength in the frequency range of 50MHz to 3.5GHz. It is suitable for measuring mobile phones, base station antennas, microwave leakage, wireless networks (Wi-Fi) RF.
The Extech 480836 is an RF Electromagnetic Field Strength Meter designed for measuring electromagnetic wave field strength. It is optimized for frequencies of 900MHz, 1800MHz, and 2.7GHz, with a measurement range of 50MHz to 3.5GHz. The device features a non-directional (isotropic) measurement capability using a three-channel triaxial probe.
| Sensor Type | Electric Field |
|---|---|
| Frequency Range | 50MHz to 3.5GHz |
| Measurement Optimization | 900MHz, 1800MHz and 2.7GHz |
| Measuring Ranges (Voltage) | 20mV/m to 108.0V/m |
| Measuring Ranges (Current) | 53μA/m to 286.4mA/m |
| Measuring Ranges (Power Density) | 1μW/m2 to 30.93mW/m2 |
| Resolution (Voltage) | 0.1mV/m |
| Dimensions | 9.3 x 2.4 x 2.4" (237 x 60 x 60mm) |
| Weight | 7oz (200g) |
The meter measures high frequency radiation in the 50MHz to 3.5GHz frequency range.
No, the measurement is non-directional (isotropic) with a three-channel triaxial probe.
The device supports mV/m, V/m, μA/m, mA/m, μW/m2, mW/m2, W/m2, μW/cm2, and mW/cm2.
