Extech HD600 Data Logging Sound Level Meter is a three-measurement range (30-130dB) sound level meter, supporting 20,000 record data logging, the highest sampling rate can reach 10 times / sec. Support USB interface, can connect computer for data recording. Includes Windows® compatible software, USB cable, wind cover, tripod, hard carrying case, AC adapter and 9V battery

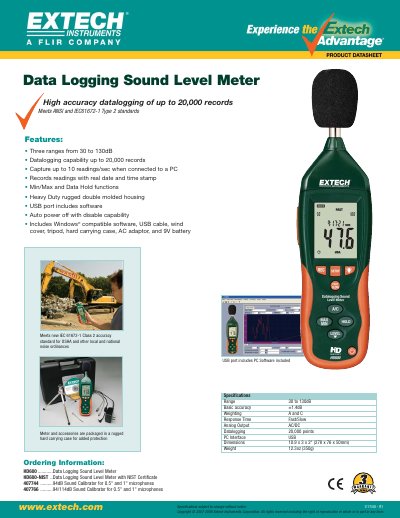

This document provides ordering information for the Extech HD600 Data Logging Sound Level Meter and its NIST-certified variant (HD600-NIST). It lists compatible sound calibrators and details the standard accessories included with the meter, such as software, a USB cable, wind cover, tripod, carrying case, AC adapter, and battery.
The HD600 features three measurement ranges from 30 to 130dB and can record up to 20,000 data points with real date and time stamps. It supports capture rates of up to 10 readings per second when connected to a PC via USB and meets ANSI and IEC61672-1 Type 2 standards for OSHA compliance.
| Range | 30 to 130dB |
|---|---|
| Datalogging capacity | 20,000 records |
| Capture rate | 10 readings/sec |
| Weighting | A and C |
| Response Time | Fast/Slow |
| Analog Output | AC/DC |
| PC Interface | USB |
| Dimensions | 10.9 x 3 x 2" (278 x 76 x 50mm) |
| Weight | 12.3oz (350g) |
The meter measures sound levels from 30 to 130dB.
The device can store up to 20,000 records.
It can capture up to 10 readings per second when connected to a PC.
