This is an industrial grade DMM/clamp meter test kit, including EX505 industrial grade CAT IV 600V, 4000 count display, waterproof (IP67), drop-proof, rugged multimeter and MA620 600A True RMS 6000 count AC clamp meter multimeter, with built-in non-contact AC voltage detector, test leads and temperature probe; CE/ETL approved

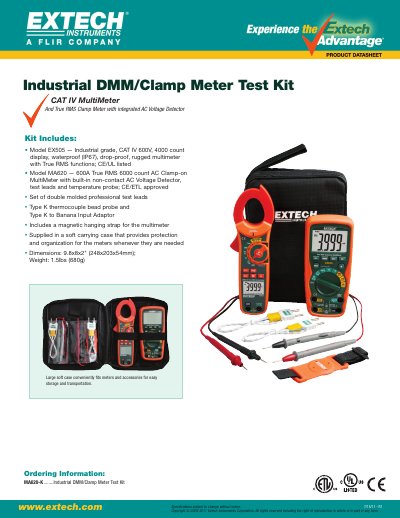

This document is a product datasheet for the EXTECH Industrial DMM/Clamp Meter Test Kit, model MA620-K. The kit includes Model EX505, an industrial-grade multimeter with True RMS functions, and Model MA620, a True RMS AC clamp-on multimeter with a built-in non-contact voltage detector.
The kit also supplies a set of double molded professional test leads, a Type K thermocouple bead probe with an adaptor, a magnetic hanging strap, and a soft carrying case. The total dimensions of the kit are 9.8x8x2 inches (248x203x54mm) with a weight of 1.5 lbs (680g).
| Multimeter Category Rating | CAT IV 600V |
|---|---|
| Multimeter Display Count | 4000 count |
| Multimeter Protection | waterproof (P67), drop-proof |
| Clamp Meter Display Count | 6000 count |
| Clamp Meter Current Rating | 600A |
| Kit Dimensions | 9.8x8x2" (248x203x54mm) |
| Kit Weight | 1.5Ibs (680g) |
The kit includes Model EX505, Model MA620, a set of double molded professional test leads, a Type K thermocouple bead probe with an adaptor, a magnetic hanging strap, and a soft carrying case.
The soft carrying case measures 9.8x8x2 inches and weighs 1.5 lbs.
The Model EX505 is rated for CAT IV 600V.
