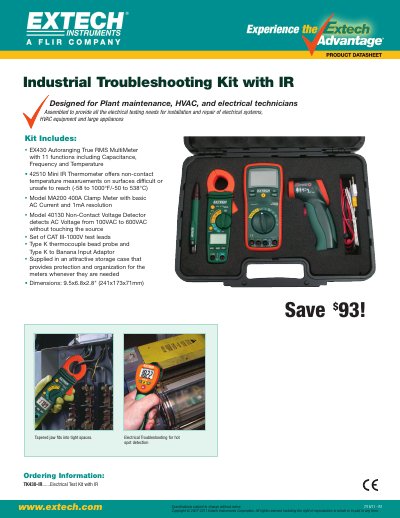

Extech TK430-IR Electrical Troubleshooting Kit features infrared technology for troubleshooting electrical systems, HVAC equipment and large appliances. The kit includes the EX430 Autoranging True RMS Multimeter, 42510 Mini Infrared Thermometer, MA200 400A Clamp Meter and 40130 Non-Contact Voltage Detector.
The EXTECH Industrial Troubleshooting Kit with IR (Model TK430-IR) is an assembled set of tools designed for plant maintenance, HVAC, and electrical technicians. The kit provides all necessary electrical testing needs for the installation and repair of electrical systems, HVAC equipment, and large appliances.
| Application | Plant maintenance, HVAC, and electrical technicians |
|---|---|
| Multimeter Functions | 11 functions including Capacitance, Frequency and Temperature |
| IR Thermometer Range | -58 to 1000°F / -50 to 538°C |
| Clamp Meter Capacity | 400A AC Current with 1mA resolution |
| Voltage Detector Range | 100VAC to 600VAC |
| Dimensions | 9.5x6.8x2.8" (241x173x71mm) |
The kit is designed for plant maintenance, HVAC, and electrical technicians to provide all electrical testing needs for installation and repair of electrical systems, HVAC equipment, and large appliances.
The Mini IR Thermometer offers non-contact temperature measurements on surfaces ranging from -58°F to 1000°F or -50°C to 538°C.
The Non-Contact Voltage Detector detects AC Voltage from 100VAC to 600VAC without touching the source.
The storage case has dimensions of 9.5x6.8x2.8 inches or 241x173x71mm.
