This document provides specifications and components of the MA640-K Phase Rotation/Clamp Meter Test Kit, which includes the MA640 True RMS Clamp-on MultiMeter, 480400 3-Phase Rotation Tester, and DV25 Dual Range AC Voltage Detector. It is an ideal kit for plant maintenance.

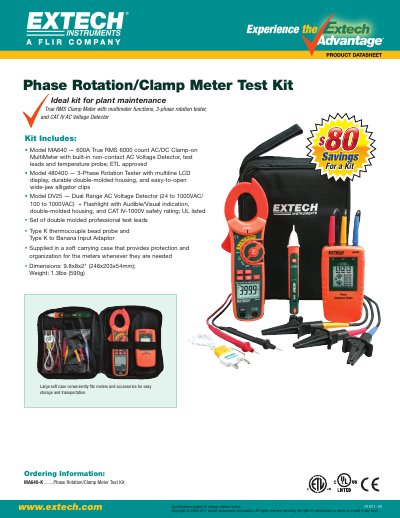

The document is a product datasheet for the EXTECH MAGAO-K Phase Rotation/Clamp Meter Test Kit. It is designed as an ideal kit for plant maintenance tasks.
The kit includes three main instruments: Model MA640, a True RMS clamp-on multimeter with non-contact voltage detection; Model 480400, a 3-phase rotation tester; and Model DV25, a dual-range AC voltage detector. It also comes with test leads, thermocouple probes, and is supplied in a soft carrying case.
| MA640 Current Rating | 600A |
|---|---|
| MA640 Count | 6000 count |
| DV25 Voltage Range | 24 to 1000VAC / 100 to 1000VAC |
| DV25 Safety Rating | CAT I\IV-1000V |
| Kit Dimensions | 9.8x8x2" (248x203x54mm) |
| Kit Weight | 1.3lbs (690g) |
The kit includes a Model MA640 True RMS AC/DC Clamp-on MultiMeter rated for 600A.
The Model DV25 detector covers a range from 24 to 1000VAC.
The soft carrying case measures 9.8x8x2 inches and weighs 1.3lbs.
