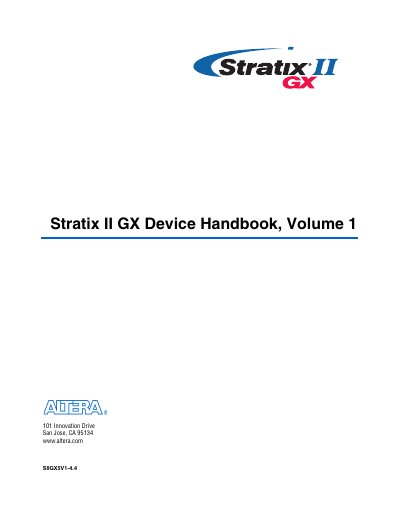

Altera Stratix II GX Device Handbook Volume 1 SIIGX5V1-4.4

About this manual

This document serves as a device data sheet and reference guide for the Altera Stratix II GX family of FPGAs. It provides detailed specifications regarding internal architecture, including transceivers, logic array blocks, adaptive logic modules, and digital signal processing blocks.

The handbook covers configuration methods such as JTAG boundary-scan support and embedded logic analysis using SignalTap II. Additionally, it details DC and switching characteristics, operating conditions, timing parameters, power consumption, and I/O standard specifications.

What's inside

• Introduction
• Stratix II GX Architecture
• Transceivers
• Logic Array Blocks
• Adaptive Logic Modules
• DSP Block
• PLLs and Clock Networks
• I/O Structure
• Configuration & Testing
• DC and Switching Characteristics

Specifications

Frequently asked questions

What is the purpose of this handbook?

This handbook provides comprehensive information about the Altera Stratix II GX family of devices.

What specific data does Section I provide for designers?

Section I provides feature definitions for transceivers, internal architecture, configuration, JTAG boundary-scan testing, DC operating conditions, AC timing parameters, power consumption references, and ordering information.

When was Chapter 4 revised?

Chapter 4 was revised in June 2009.
