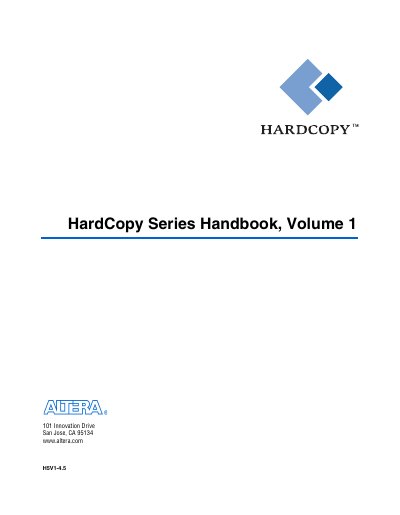

Altera HardCopy Series Handbook Volume 1

About this manual

This document serves as a comprehensive handbook for the HardCopy Series of FPGA devices, covering both HardCopy Stratix and HardCopy APEX families. It details device architecture, features, and operating conditions, including specific sections on boundary-scan support and power consumption.

What's inside

• Introduction to HardCopy Stratix Devices
• Description, Architecture, and Features
• Boundary-Scan Support
• Operating Conditions
• Quartus II Support
• Design Guidelines for Performance Improvement
• Introduction to HardCopy APEX Devices
• Back-End Design Flow
• Back-End Timing Closure
• Power-Up Modes and Configuration Emulation

Specifications

Frequently asked questions

How can I estimate power consumption for HardCopy Stratix devices?

The handbook includes a section on Early Power Estimation specifically for HardCopy Stratix devices.

What specific timing issues must be addressed when designing for HardCopy series devices?

Designers must address hold-time violations and setup-time violations to ensure timing closure.
