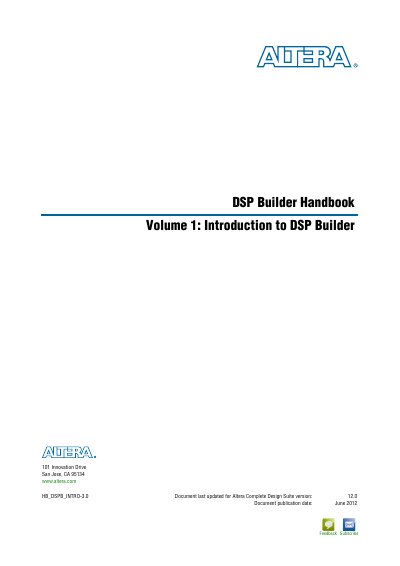

Altera HB_DSPB_INTRO-3.0 DSP Builder Handbook Volume 1 Introduction to DSP Design

About this manual

The document serves as an introduction to designing Digital Signal Processing (DSP) systems within FPGA architecture. It contrasts traditional fixed-architecture DSP processors with the reconfigurable nature of FPGAs, highlighting features like embedded memory and programmable logic that allow for customized hardware acceleration.

Furthermore, the text details a software-based design flow enabled by Altera tools such as MATLAB, Simulink, and the Nios II embedded processor suite. This approach allows engineers to develop algorithms in high-level languages before implementing them directly into FPGA hardware without requiring extensive knowledge of Hardware Description Languages (HDL).

What's inside

• Introducing DSP Design
• DSP Systems in FPGAs
• FPGA Architecture Features
• Software Design Flow with DSP Processors
• DSP Design Flow in FPGAs
• Advanced and Standard Blocksets
• Installing DSP Builder

Frequently asked questions

What are the limitations of traditional DSP processors for customized applications?

Fixed hardware architecture, such as bus performance bottlenecks and a fixed number of multiply accumulate (MAC) blocks, limits their suitability for customized implementations.

How does FPGA customization differ from DSP processor design?

FPGAs offer complete hardware customization allowing users to customize the architecture, bus structure, memory, and number of MAC blocks.

Which software tools are used for algorithm development in this design flow?

Engineers use MATLAB to optimize DSP algorithms and Simulink for system-level modeling.
