This is a pin definition document for the Altera EPF6010A device, which lists all the pins and their functions in detail

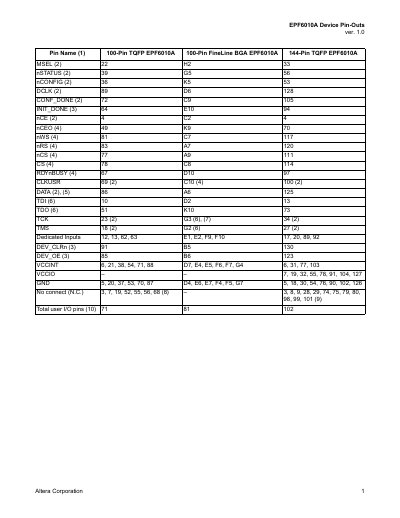

The document serves as a technical reference for the Altera EPF6010A Field Programmable Gate Array (FPGA). It details the specific pin assignments for three different package configurations: 100-Pin TQFP, 100-Pin FineLine BGA, and 144-Pin TQFP. The table lists dedicated configuration pins such as nCONFIG, CONF_DONE, and INIT_DONE alongside user I/O pins.
The document lists 71, 81, or 102 total user I/O pins depending on the specific package type.
Pins 12, 13, 62, and 63 are designated as Dedicated Inputs.
The document version is 1.0.
