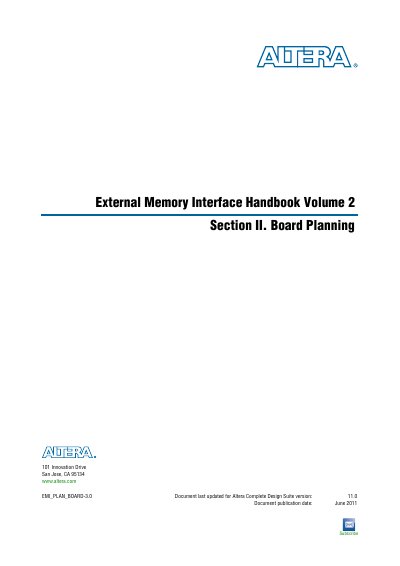

This handbook describes the board level design of the External Memory Interface
This document serves as a technical guide for designing board layouts for external memory interfaces. It focuses on improving signal integrity for DDR2 and DDR3 SDRAM systems by addressing leveling, dynamic on-die termination (ODT), output driver impedance, and loading effects. The text compares various termination schemes and their impact on signal quality at the receiver.
| Document Version | EMI_PLAN_BOARD-3.0 |
|---|---|
| Software Version | Altera Complete Design Suite version 11.0 |
| Publication Date | June 2011 |
The objective is to understand trade-offs between termination schemes, output drive strengths, and loading types to choose the best settings for designs.
This chapter provides guidelines on how to improve signal integrity and layout instructions for implementing a DDR2 or DDR3 SDRAM interface.
Poorly transmitted signals can dramatically reduce the overall data-valid margin at the receiver.
