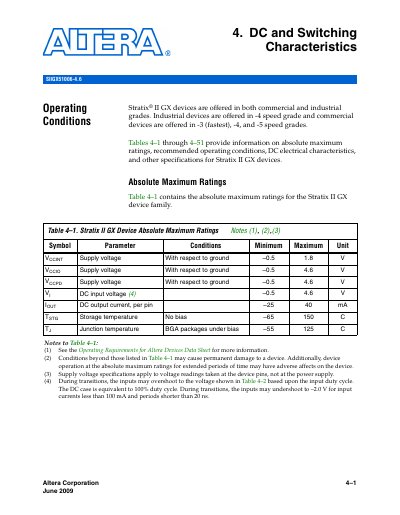

This datasheet provides information on absolute maximum ratings, recommended operating conditions, DC electrical characteristics, and other specifications for Stratix II GX devices
This document provides detailed information on the operating conditions and electrical characteristics for the Altera Stratix II GX device family. It covers both commercial and industrial grade devices, specifying absolute maximum ratings and recommended operating conditions for various supply voltages and speed grades.
The handbook also includes comprehensive specifications for the transceiver blocks, detailing AC performance, input/output voltage levels, clock frequencies, and data rates for different speed grades (-3, -4, and -5).
| Storage temperature | -65 to 150 C |
|---|---|
| Junction temperature (Commercial) | 0 to 85 C |
| Junction temperature (Industrial) | -40 to 100 C |
| Transceiver block supply voltage (VCCA) | 3.135 - 3.465 V |
| Receiver Data rate | 600 - 6375 Mbps |
| On-chip termination resistors | 115 ±20% Ω |
Industrial devices are offered in the -4 speed grade, while commercial devices are offered in -3, -4, and -5 speed grades.
The maximum duty cycle for VI at 4.0 V is 100%.
The typical transceiver block supply voltage (VCCA) is 3.3 V.
