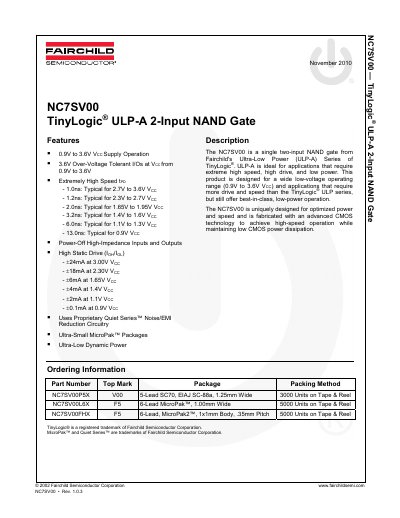

The NC7SV00 is a single two-input NAND gate from Fairchild's Ultra-Low Power (ULP-A) Series of TinyLogic®. ULP-A is ideal for applications that require extreme high speed, high drive, and low power. This product is designed for a wide low-voltage operating range (0.9V to 3.6V VCC) and applications that require more drive and speed than the TinyLogic® ULP series, but still offer best-in-class, low-power operation. The NC7SV00 is uniquely designed for optimized power and speed and is fabricated with an advanced CMOS technology to achieve high-speed operation while maintaining low CMOS power dissipation.
The NC7SV00 is a single two-input NAND gate from Fairchild's Ultra-Low Power (ULP-A) Series of TinyLogic devices. It is designed for applications requiring extreme high speed, high drive capability, and low power consumption within a wide low-voltage operating range of 0.9V to 3.6V Vcc.
The device utilizes proprietary Quiet Series noise/EMI reduction circuitry and is available in Ultra-Small MicroPak packages. Key features include over-voltage tolerant I/Os, power-off high-impedance inputs and outputs, and high static drive current.
| Supply Voltage Range | 0.9V to 3.6V Vcc |
|---|---|
| Typical Propagation Delay (2.7V-3.6V) | 1.0ns |
| Typical Propagation Delay (0.9V) | 13.0ns |
| High Static Drive Current (+24mA) | +24mA at 3.00V Vcc |
The device operates with a Vcc supply from 0.9V to 3.6V.
The typical propagation delay for a supply between 2.7V and 3.6V is 1.0ns.
