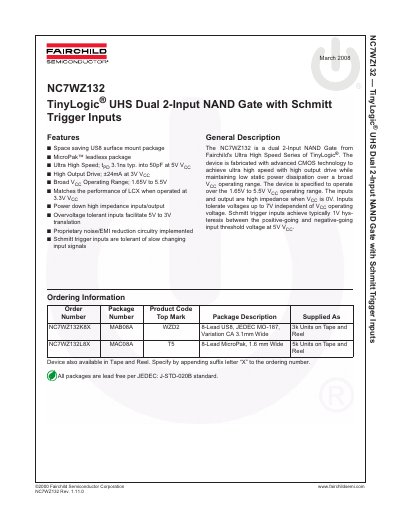

The NC7WZ132 is a dual 2-Input NAND Gate from Fairchild's Ultra High Speed Series of TinyLogic®. The device is fabricated with advanced CMOS technology to achieve ultra high speed with high output drive while maintaining low static power dissipation over a broad VCC operating range.
The document describes the NC7WZ132, a dual 2-Input NAND Gate from Fairchild's TinyLogic® Ultra High Speed Series. The device is fabricated with advanced CMOS technology to achieve ultra high speed and high output drive while maintaining low static power dissipation over a broad operating voltage range of 1.65V to 5.5V.
The datasheet provides comprehensive technical specifications including absolute maximum ratings, recommended operating conditions, DC electrical characteristics (threshold voltages, hysteresis, output levels), and AC electrical characteristics (propagation delay). It also includes connection diagrams, logic symbols, function tables, and physical package dimensions for the US8 and MicroPak formats.
| Operating Voltage Range | 1.65V to 5.5V |
|---|---|
| Propagation Delay (Typ) | 3.1ns typ. |
| High Output Drive | +24mA at 3V Veco |
| Supply Voltage (Operating) | 1.65V to 5.5V |
| Operating Temperature | -40°C to +85°C |
Yes, Schmitt trigger inputs are implemented to be tolerant of slow changing input signals.
The device operates over a supply voltage range of 1.65V to 5.5V.
The device provides high output drive of +24mA at 3V Vcc.
The typical propagation delay is 3.1ns into 50pF at 5V Vcc.
