The NC7WZ00 is a dual 2-Input NAND Gate from Fairchild's Ultra High Speed Series of TinyLogic. The device is fabricated with advanced CMOS technology to achieve ultra high speed with high output drive while maintaining low static power dissipation over a broad VCC operating range. The device is specified to operate over the 1.65V to 5.5V VCC operating range. The inputs and output are high impedance when VCC is 0V. Inputs tolerate voltages up to 7V independent of VCC operating voltage.

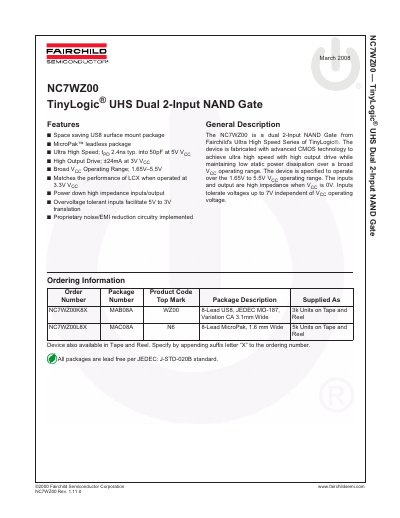

This document is a datasheet for the Fairchild Semiconductor NC7WZ00, a dual 2-Input NAND Gate from the Ultra High Speed Series of TinyLogic. The device is fabricated with advanced CMOS technology to achieve ultra-high speed with high output drive while maintaining low static power dissipation over a broad operating voltage range of 1.65V to 5.5V. It is available in space-saving US8 surface mount and MicroPak leadless packages.
| Operating Voltage Range | 1.65V to 5.5V |
|---|---|
| Propagation Delay (Typical) | 2.4ns |
| High Output Drive | +24mA |
The device is specified to operate over the 1.65V to 5.5V Vee operating range.
Yes, the inputs are overvoltage tolerant and facilitate 5V to 3V translation.
