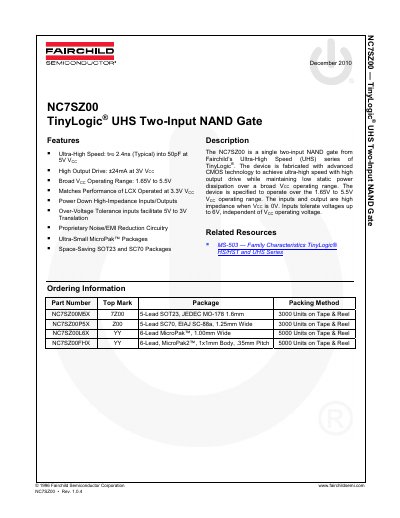

The document describes the Fairchild Semiconductor NC7SZ00, a single two-input NAND gate belonging to the Ultra-High Speed (UHS) series of TinyLogic devices. Fabricated with advanced CMOS technology, it achieves ultra-high speed performance while maintaining low static power dissipation over a broad operating voltage range.
| Propagation Delay (Typical) | 2.4ns into 50pF at 5V Vcc |
|---|---|
| High Output Drive | +24mA at 3V Vcc |
| Operating Voltage Range | 1.65V to 5.5V |
| Input Tolerance | Up to 6V independent of Vcc |
The typical propagation delay is 2.4ns into a 50pF load at 5V supply.
The device is available in SOT23, SC70, and MicroPak packages.
