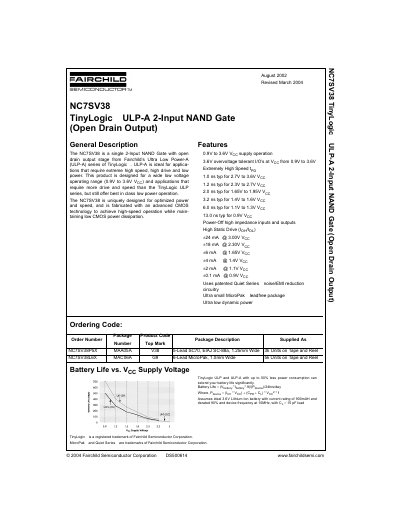

The NC7SV38 is a single 2-input NAND Gate with open drain output stage from Fairchild's Ultra Low Power-A (ULP-A) series of TinyLogic. ULP-A is ideal for applications that require extreme high speed, high drive and low power. This product is designed for a wide low voltage operating range (0.9V to 3.6V VCC) and applications that require more drive and speed than the TinyLogic ULP series, but still offer best in class low power operation. The NC7SV38 is uniquely designed for optimized power and speed, and is fabricated with an advanced CMOS technology to achieve high-speed operation while maintaining low CMOS power dissipation.
The NC7SV38 is a single 2-Input NAND Gate with an open-drain output stage designed for applications requiring extreme high speed, high drive, and low power. It features a wide low-voltage operating range of 0.9V to 3.6V Vcc.
| Supply Voltage (Vcc) | 0.9V to 3.6V |
|---|
The device operates with a supply voltage from 0.9V to 3.6V.
Yes, it is a single 2-Input NAND Gate with an open-drain output stage.
