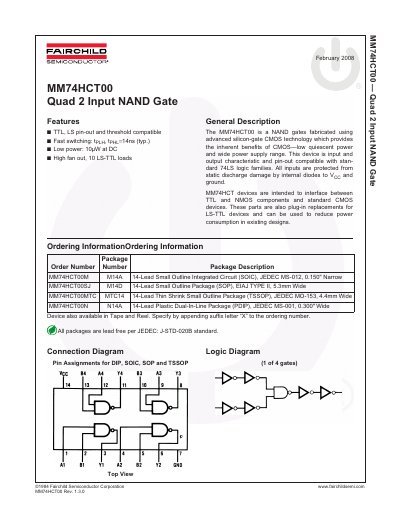

The MM74HCT00 is a quad 2-input NAND gate manufactured by Fairchild Semiconductor. The device features TTL, LS pin-out and threshold compatibility, fast switching, low power and high fan out.
The MM74HCT00 is a Quad 2-Input NAND Gate fabricated using advanced silicon-gate CMOS technology. It provides TTL, LS pin-out and threshold compatibility, making it suitable for interfacing between TTL, NMOS, and standard CMOS devices. The device offers fast switching speeds with a typical propagation delay of 14ns and low power consumption of 10uW at DC.
| Operating Temperature | -40°C to +85°C |
|---|---|
| Propagation Delay (Typ) | 14ns |
The typical propagation delay is 14ns.
Yes, it has TTL, LS pin-out and threshold compatibility.
