The document describes the features and characteristics of MM74HC00 quad 2-input NAND gate, including propagation delay, power supply range, quiescent current, input current, and load driving capability.

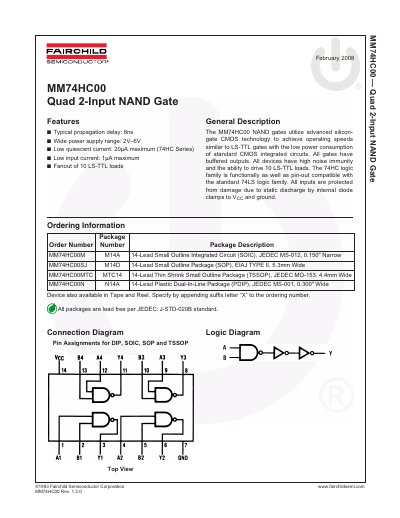

This document is a datasheet for the Fairchild MM74HC000, a Quad 2-Input NAND Gate utilizing advanced silicon-gate CMOS technology. The device offers operating speeds similar to LS-TTL gates with low power consumption and includes buffered outputs with high noise immunity.
| Typical propagation delay | 8ns |
|---|---|
| Wide power supply range | 2V-6V |
| Low quiescent current | 20uA maximum |
| Low input current | 1uA maximum |
| Fanout | 10 LS-TTL loads |
| Supply Voltage (Min) | 2V |
| Supply Voltage (Max) | 6V |
| Operating Temperature Range | -40°C to +85°C |
| Maximum Propagation Delay (Vcc=2.0V) | 45 ns |
| Maximum Propagation Delay (Vcc=6.0V) | 15 ns |
The typical propagation delay is 8ns.
The recommended operating temperature range is -40°C to +85°C.
Yes, the 74HC logic family is functionally as well as pin-out compatible with the standard 74LS logic family.
