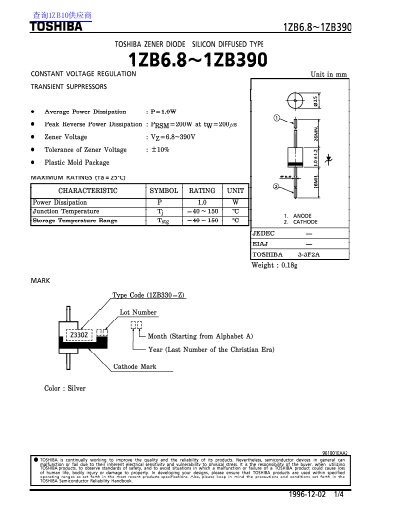

This document is a datasheet for Toshiba 1ZB6.8~1ZB390 silicon diffused type zener diodes. It provides constant voltage regulation and transient suppressor specifications with an average power dissipation of 1.0W and a peak reverse power dissipation of 200W.
| Average Power Dissipation | 1.0W |
|---|---|
| Peak Reverse Power Dissipation | 200W |
| Junction Temperature Range | -40 ~ 150 °C |
| Storage Temperature Range | -40 ~ 150 °C |
| Zener Voltage Tolerance | ±10% |
The average power dissipation is rated at 1.0 W.
The peak reverse power dissipation is 200 W at a pulse width of 200 microseconds.
The junction temperature range is from -40 to 150 degrees Celsius.
