The FDMF6707B is a high-performance, high-frequency DrMOS module from Fairchild Semiconductor Corporation. It has a ultra-compact 6x6mm PQFN package, saving 72% of space. It has a peak efficiency of over 93% and can handle a current of 50A.

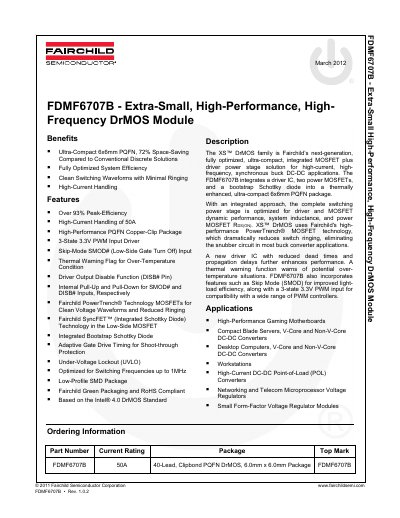

The FDMF6707B is an extra-small, high-performance, high-frequency DrMOS module from Fairchild Semiconductor. It integrates a driver IC, two power MOSFETs, and a bootstrap Schottky diode into a thermally enhanced 6x6mm PQFN package. Designed for high-current, high-frequency synchronous buck DC-DC applications, it is optimized for switching frequencies up to 1MHz and features Fairchild PowerTrench and SyncFET technologies.
| Package | 40-Lead, Clipbond PQFN, 6.0mm x 6.0mm |
|---|---|
| Peak Efficiency | Over 93% |
| Switching Frequency | Up to 1MHz |
| Ambient Temperature Range | -40 to +125 °C |
The module uses a 40-Lead, Clipbond PQFN package measuring 6.0mm x 6.0mm.
The module is optimized for switching frequencies up to 1MHz.
Yes, it includes a thermal warning flag (THWN#) that pulls LOW when the temperature exceeds the trip limit.
