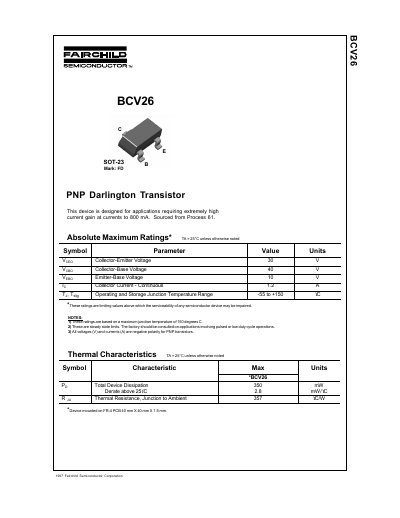

The BCV26 is a PNP Darlington transistor from Fairchild Semiconductor Corporation. This device is designed for applications requiring extremely high current gain at currents to 800 mA.
This document describes the Fairchild BCV26, a PNP Darlington transistor designed for applications requiring extremely high current gain at currents up to 800 mA. The device is sourced from Process 61 and features an operating junction temperature range of -55°C to +150°C.
| Collector Current - Continuous | 1.2 A |
|---|---|
| Operating Junction Temperature Range | -55 to +150 °C |
| Package Type | SOT-23 |
The continuous collector current rating is 1.2 A.
The device supports a continuous collector current of 1.2 A.
The maximum total device dissipation is 350 mW.
The operating and storage junction temperature range is -55 to +150 °C.
