MMBFJ305 is an N-Channel RF amplifier designed for electronic switching applications, with low On Resistance analog switching.

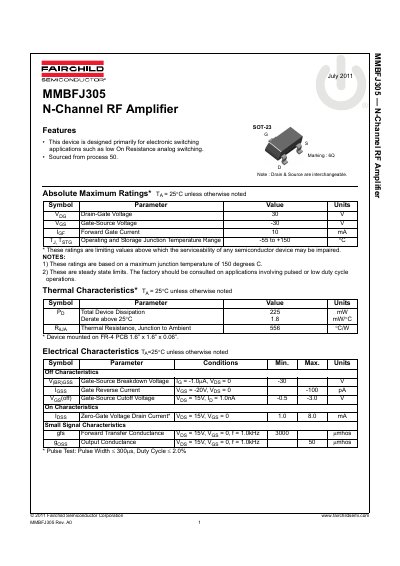

This document is a technical datasheet for the Fairchild Semiconductor MMBFJ305, an N-Channel RF Amplifier designed primarily for electronic switching applications. It provides absolute maximum ratings, thermal characteristics, and small signal electrical specifications at a junction temperature of 25°C.
The datasheet also includes physical dimensions for the SOT-23 package, recommended land patterns based on JEDEC standards, and trademark information along with legal disclaimers regarding product use in life support devices.
| Marking Code | 6Q |
|---|---|
| Drain-Gate Voltage (Max) | 30 V |
| Gate-Source Voltage (Max) | -30 V |
| Forward Gate Current (Max) | 10 mA |
| Junction Temperature Range | -55 to +150 °C |
| Total Device Dissipation (Max) | 225 mW |
| Thermal Resistance, Junction to Ambient | 556 °C/W |
The device is designed primarily for electronic switching applications such as low On Resistance analog switching.
Yes, the datasheet notes that the Drain & Source are interchangeable.
