This product is a p-channel switch designed for low level analog switching sample and hold circuits and chopper stabilized amplifiers

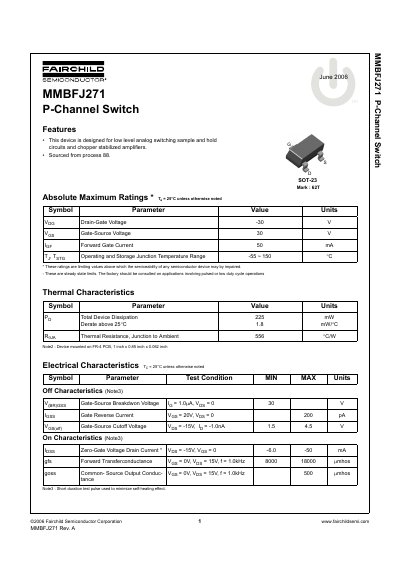

This document is a datasheet for the Fairchild Semiconductor MMBFJ271, a P-Channel Switch designed for low-level analog switching, sample and hold circuits, and chopper stabilized amplifiers. The device is sourced from process 88 and is housed in a SOT-23 package.
The datasheet provides absolute maximum ratings, including a Drain-Gate Voltage of -30V and an Operating Junction Temperature Range of -55°C to 150°C. It also lists electrical characteristics such as forward transfer conductance (8000-18000 pmhos) and gate-source cutoff voltage (1.5-4.5V). Package dimensions for the SOT-23 form factor are included on the second page.
| Drain-Gate Voltage | -30 V |
|---|---|
| Gate-Source Voltage | 30 V |
| Operating and Storage Junction Temperature Range | -55 ~ 150 °C |
| Package Type | SOT-23 |
This device is designed for low level analog switching sample and hold circuits and chopper stabilized amplifiers.
The operating and storage junction temperature range is -55 to 150 °C.
