2N5460/5461/5462 is a P-channel general purpose amplifier, mainly used for low level audio and general purpose applications with high impedance signal sources.

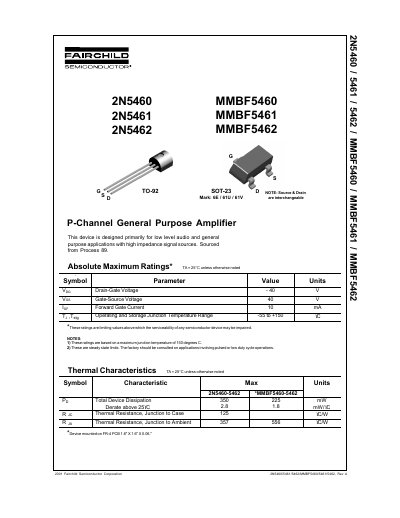

This document provides design specifications and preliminary data for the Fairchild 2N5460, 2N5461, and 2N5462 series of P-Channel General Purpose Amplifiers. These devices are designed primarily for low-level audio and general-purpose applications with high-impedance signal sources. The datasheet includes absolute maximum ratings, thermal characteristics, and electrical parameters for all three models.
| Drain-Gate Voltage | -40 V |
|---|---|
| Gate-Source Voltage | 40 V |
| Forward Gate Current | 10 mA |
| Operating and Storage Junction Temperature Range | -55 to +150 °C |
| Total Device Dissipation | 350 mW |
| Thermal Resistance, Junction to Ambient | 357 °C/W |
| Package Type | SOT-23 |
They are designed primarily for low level audio and general purpose applications with high impedance signal sources.
The maximum junction temperature is 150 degrees C.
The typical noise figure is 1.0 dB.
