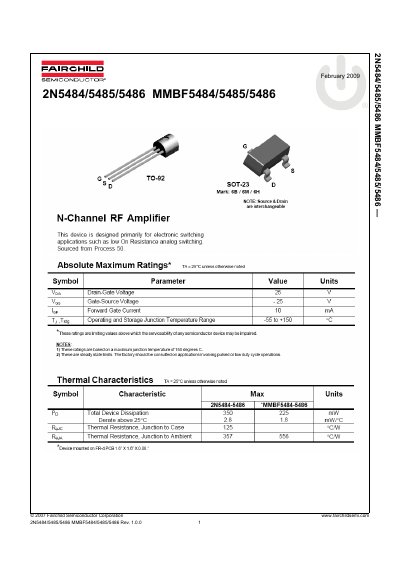

FAIRCHILD 2N5484/2N5485/2N5486/MMBF5484/MMBF5485/MMBF5486 N-Channel RF Amplifier handbook

2N5484/5485/5486 MMBF5484/5485/5486 is a product manual published by Fairchild Semiconductor Corporation, which details the characteristics and parameters of the product

Brand: Fairchild
Document type: Datasheet
Language: English
Pages: 7
File format: PDF
File size: 358 KB
Published: 12 July, 2012
Updated: 01 October, 2023
MD5 checksum: B569E2C30A27505B5BB7BA75C5E7B08D
PDF: FAIRCHILD 2N5484/2N5485/2N5486/MMBF5484/MMBF5485/MMBF5486 N-Channel RF Amplifier handbook PDF

About this manual

This document provides technical specifications for the 2N5484, 2N5485, and 2N5486 N-Channel RF Amplifiers. It details absolute maximum ratings, electrical characteristics including off-state breakdown voltages and on-state drain currents, and small signal parameters such as transconductance and capacitance.

What's inside

Absolute Maximum Ratings
Electrical Characteristics
Small Signal Characteristics
Typical Characteristics
Common Source Characteristics
Common Gate Characteristics

Specifications

Drain-Gate Voltage (Vos)	25 V
Gate-Source Voltage (Ves)	-25 V
Forward Gate Current	10 mA
Operating Junction Temperature Range	-55 to +150 °C
Total Device Dissipation (2N5484-5486)	350 mW
Thermal Resistance Junction to Case (RθJC)	125 °C/W

Frequently asked questions

What is the typical forward transfer conductance for the 2N5486 at 1 kHz?

The typical value is 8000 umhos.

What are the input and output capacitances at 1.0 MHz?

The input capacitance (Ciss) is 5.0 pF, reverse transfer capacitance (Crss) is 1.0 pF, and output capacitance (Coss) is 2.0 pF.

Is the source and drain interchangeable?

Yes, the device is designed with interchangeable Source & Drain terminals.
