The PF5102 N-Channel Switch is a low-level analog switch designed for use in sample and hold circuits and chopper stabilized amplifiers.

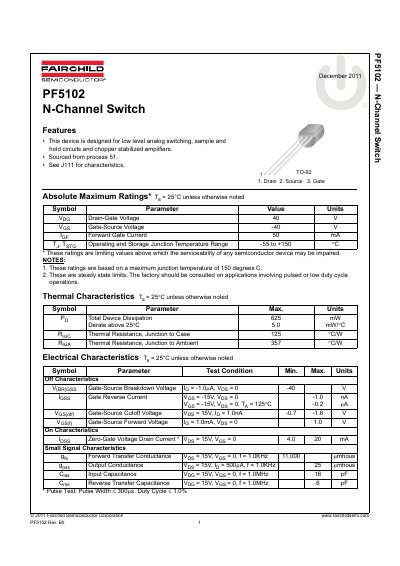

This document is a datasheet for the Fairchild Semiconductor PF5102, an N-Channel Switch designed for low-level analog switching, sample and hold circuits, and chopper stabilized amplifiers. The device is sourced from process 51 and is packaged in a TO-92 package.
| Pin Configuration | 1. Drain 2. Source 3. Gate |
|---|---|
| Drain-Gate Voltage | 40 V |
| Gate-Source Voltage | -40 V |
| Forward Gate Current | 50 mA |
| Operating Junction Temperature Range | -55 to +150 °C |
| Total Device Dissipation | 625 mW |
| Thermal Resistance, Junction to Case | 125 °C/W |
| Gate-Source Breakdown Voltage | -40 V |
| Gate-Source Cutoff Voltage | -0.7 to -1.6 V |
| Zero-Gate Voltage Drain Current | 4.0 to 20 mA |
| Forward Transfer Conductance | 11,000 µmhos |
| Input Capacitance | 16 pF |
This device is designed for low level analog switching, sample and hold circuits and chopper stabilized amplifiers.
The maximum total device dissipation is 625 mW.
The thermal resistance from junction to case is 125 °C/W.
