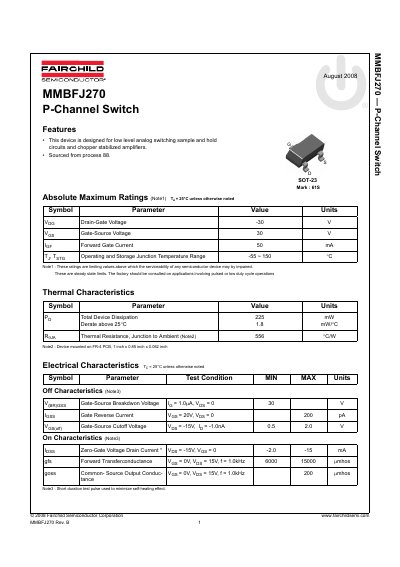

This document describes the features of MMBFJ270 P-Channel Switch, including its suitability for low-level analog switching sample and hold circuits and chopper stabilized amplifiers. It also provides the maximum ratings and thermal characteristics of the device.
This document is a technical datasheet for the Fairchild Semiconductor MMBFJ270, a P-channel MOSFET switch. The device is specifically designed for use in low-level analog switching applications, such as sample-and-hold circuits and chopper-stabilized amplifiers.
The datasheet provides absolute maximum ratings, electrical characteristics including off and on-state parameters, thermal characteristics, and typical performance curves. It also includes package dimensions for the SOT-23 form factor.
| Drain-Gate Voltage (VDS) | -30 V |
|---|---|
| Gate-Source Voltage (VGS) | ±30 V |
| Forward Gate Current (IG) | 50 mA |
| Operating Junction Temperature Range | -55 to +150 °C |
This device is designed for low level analog switching sample and hold circuits and chopper stabilized amplifiers.
The operating and storage junction temperature range is -55 to 150 degrees Celsius.
