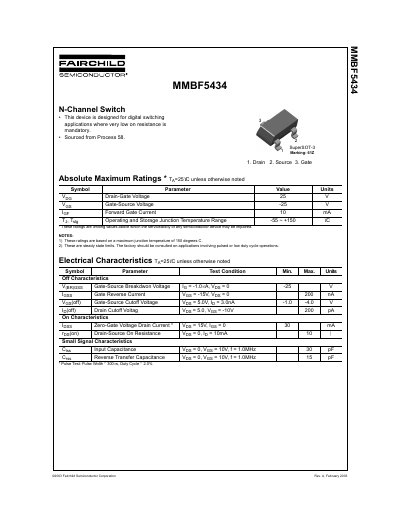

This document describes the absolute maximum ratings and electrical characteristics of the MMBF5434 model product produced by Fairchild Semiconductor Corporation.
This document provides technical specifications for the Fairchild Semiconductor MMBF5434, an N-Channel Switch designed for digital switching applications requiring very low on-resistance. The device is available in a SuperSOT-3 package.
The datasheet details absolute maximum ratings such as drain-gate voltage and operating temperature ranges, along with electrical characteristics including cutoff voltages, on-resistance, and capacitance values at 25°C.
This device is designed for digital switching applications where very low on resistance is mandatory.
The maximum drain-gate voltage rating is 25 V.
The maximum total device dissipation is 350 mW.
