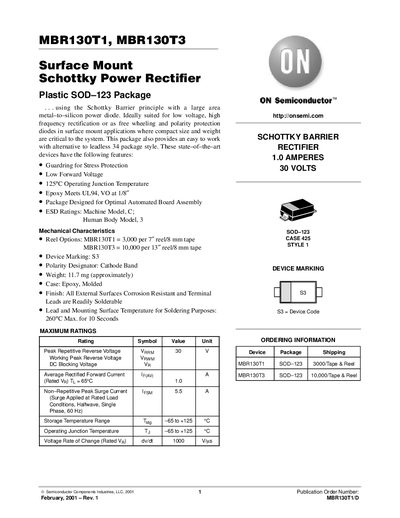

The ON Semiconductor MBR130T1/DMBR130T1 and MBR130T3 are surface‑mount Schottky power rectifiers with low forward voltage, high temperature rating, and…
The MBR130T1/DMBR130T1 and MBR130T3 are surface‑mount Schottky barrier rectifiers designed for low‑voltage, high‑frequency rectification, free‑wheeling, and polarity‑protection in compact electronic assemblies. Their epoxy‑filled SOD‑123 package provides a small footprint, ESD protection, and easy automated board assembly.
Key specifications include a peak reverse voltage of 30 V, average forward current rating of 1.0 A, forward voltage of about 0.45 V at 1 A, and an operating junction temperature up to 125 °C. Thermal resistance values are 230 °C/W (junction‑to‑ambient) and 108 °C/W (junction‑to‑lead). The datasheet also lists mechanical dimensions, reel options, and recommended PCB footprint for the SOD‑123 case.
| Thermal Resistance, Junction‑to‑Ambient (RθJA) | 230 °C/W |
|---|---|
| Operating Junction Temperature Range | -65 °C to +125 °C |
Both parts are supplied in a surface‑mount SOD‑123 package.
The maximum operating junction temperature is 125 °C.
