NTP18N06L and NTB18N06L are N-channel MOSFETs manufactured by Semiconductor Components Industries, LLC. They have a maximum voltage of 60V and a maximum current of 15A. Typical applications include power supplies, converters, electric motor controls, and bridge circuits.

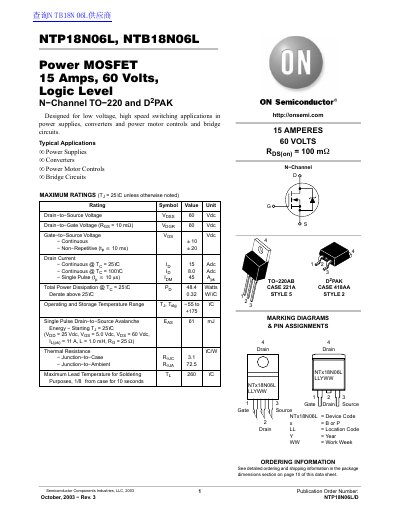

This document is a technical datasheet for the NTP18NO6L and NTB18NO6L, which are logic level N-channel power MOSFETs available in TO-220 and D2PAK packages. These devices are designed for low voltage, high speed switching applications found in power supplies, converters, motor controls, and bridge circuits.
| Drain-to-Source Voltage | 60 Vdc |
|---|---|
| Continuous Drain Current (Tj = 25°C) | 15 Adc |
| Total Power Dissipation (Ta = 25°C) | 48.4 Watts |
| Operating and Storage Temperature Range | -55 to +175 °C |
| Package Types | TO-220 and D2PAK |
The device is designed for low voltage, high speed switching applications in power supplies, converters, power motor controls and bridge circuits.
The maximum continuous drain current (Ip) is 15 Adc when the junction temperature is 25°C.
The total power dissipation must be derated by 0.32 Watts per degree Celsius above 25°C.
