This datasheet provides the characteristics parameters of 125N02R/D MOSFET, including maximum voltage, maximum current, maximum power, maximum temperature, etc.

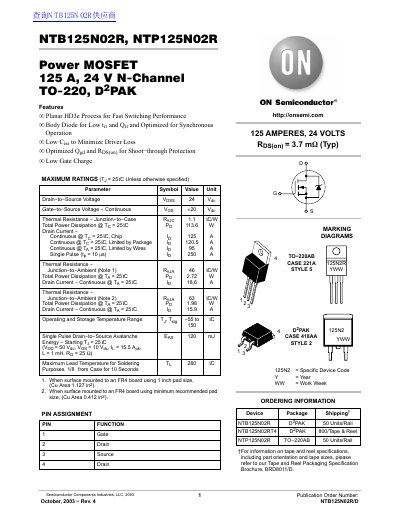

This document provides technical specifications for the NTB125N02R and NTP125N02R N-Channel Power MOSFETs. The devices feature a 125 ampere continuous drain current and a 24 volt drain-to-source voltage rating. They are designed for fast switching performance and include an optimized body diode for synchronous operation.
| Drain-to-Source Voltage | 24 V |
|---|---|
| Continuous Drain Current (TO-220) | 125 A |
| Continuous Drain Current (D2PAK) | 120.5 A |
| Thermal Resistance Junction-to-Case | 11 °C/W |
| Operating Temperature Range | -55 to 150 °C |
The device is available in TO-220AB and D2PAK packages.
The maximum continuous gate-to-source voltage is +20 V.
The typical total gate charge is 23.6 nC.
