MMBZ4681 THRU MMBZ4717 ZENER DIODES MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS，this datasheet provides the maximum ratings and electrical characteristics of MMBZ4681 THRU MMBZ4717 ZENER DIODES.

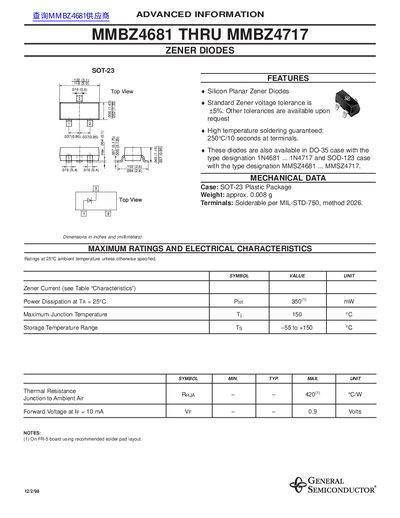

This datasheet covers the General Semiconductor MMBZ4681 through MMBZ4717 series of Zener diodes. It lists mechanical data such as the SOT‑23 plastic package, weight, and solderable terminals, as well as the availability of alternative DO‑35 and SOD‑123 packages.
The document provides maximum ratings and electrical characteristics, including Zener voltage ranges, power dissipation, forward voltage at 10 mA, thermal resistance, and storage temperature limits. Detailed tables give the nominal Zener voltage, test current, and reverse leakage for each part number in the series.
| Package | SOT‑23 Plastic Package |
|---|---|
| Weight | ≈0.008 g |
| Maximum Power Dissipation | 350 mW (at 25 °C) |
| Maximum Junction Temperature | 150 °C |
| Storage Temperature Range | ‑55 °C to +150 °C |
| Forward Voltage @ 10 mA | ≈0.9 V |
They are supplied in a SOT‑23 plastic package, with optional DO‑35 and SOD‑123 versions.
The maximum power dissipation is 350 mW at an ambient temperature of 25 °C.
They can be stored from –55 °C up to +150 °C.
