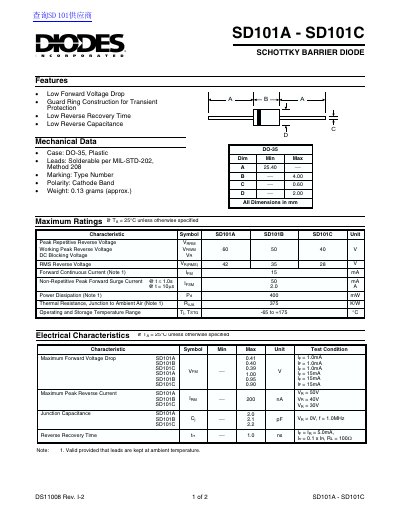

SD101A - SD101C are Schottky Barrier Diodes with low forward voltage drop, transient protection, low reverse recovery time and low reverse capacitance
This document is a datasheet for the Diodes Incorporated SD101 series of Schottky barrier diodes. The product line includes three specific models: SD101A, SD101B, and SD101C, which differ by their maximum reverse voltage ratings.
Key features highlighted in the text include a low forward voltage drop, guard ring construction for transient protection, low reverse recovery time, and low reverse capacitance. The devices are housed in a DO-35 plastic case.
| Case Style | DO-35, Plastic |
|---|---|
| Forward Continuous Current | 15 mA |
| Power Dissipation | 400 mW |
| Operating Temperature Range | -65 to +175 °C |
The maximum peak reverse recovery time (tr) is 1.0 ns.
The maximum forward continuous current is 15 mA.
The operating and storage temperature range is -65 to +175 °C.
