FDMC7678 is an N-Channel MOSFET produced by Fairchild Semiconductor. It has a maximum voltage of 30V, a maximum current of 19.5A, and a maximum on-state resistance of 5.3mΩ. This device is well suited for power management and load switching applications common in Notebook Computers and Portable Battery Packs.

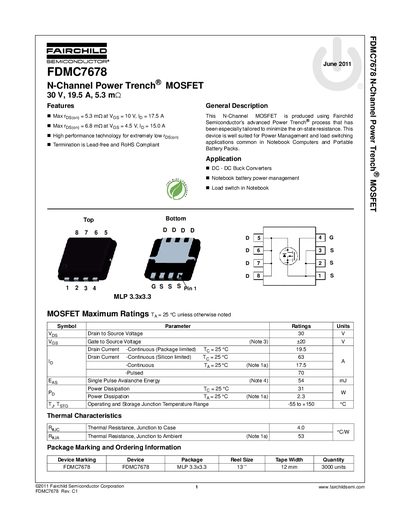

The FDMC7678 is an N-Channel MOSFET produced using Fairchild Semiconductor's advanced Power Trench process to minimize on-state resistance. It is specifically tailored for power management and load switching applications found in notebook computers and portable battery packs. The device features lead-free termination and is RoHS compliant.
| Drain to Source Voltage | 30 V |
|---|---|
| Continuous Drain Current (Package limited) | 19.5 A |
| Continuous Drain Current (Silicon limited) | 63 A |
| Power Dissipation (Ta = 25°C) | 2.3 W |
| Operating and Storage Junction Temperature Range | -55 to +150 °C |
| Thermal Resistance, Junction to Case | 4.0 °C/W |
| Thermal Resistance, Junction to Ambient | 53 °C/W |
| Input Capacitance | 1810 pF |
| Output Capacitance | 620 pF |
| Reverse Transfer Capacitance | 75 pF |
Yes, the termination is lead-free and RoHS Compliant.
The maximum continuous drain current is 19.5 A when package limited at Tc = 25°C.
