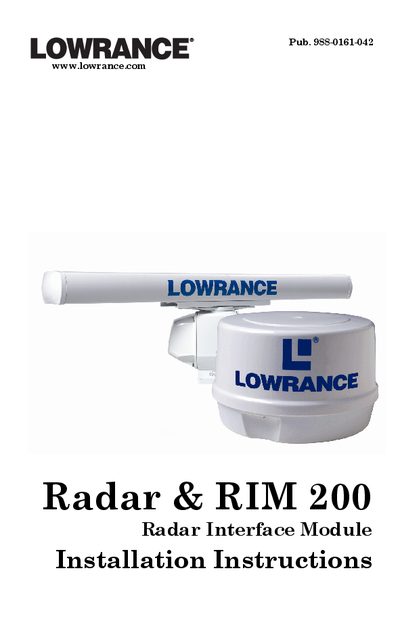

Lowrance RIM 200 Radar Interface Module Installation Instructions

About this manual

This document provides installation instructions for the Lowrance RIM 200 radar interface module. The system consists of a radar scanner unit, a display unit (sold separately), and the RIM 200 module which connects them. The manual explains how to install both the scanner unit and the interface module.

What's inside

• Warnings and Cautions
• Introduction
• Radar operation
• Antenna characteristics
• False echoes
• Radar interference
• Installation Considerations

Frequently asked questions

What is the RIM 200 used for in this radar system?

The RIM 200 connects the scanner unit and the display unit.

How far above persons must the radar antenna be installed?

The radar antenna must be installed a minimum distance of 1 foot (0.8 m) or more ABOVE all persons.

What happens if a mast is in the path of the antenna's sweep?

It creates a shadow zone where no targets will be recognized behind it.
