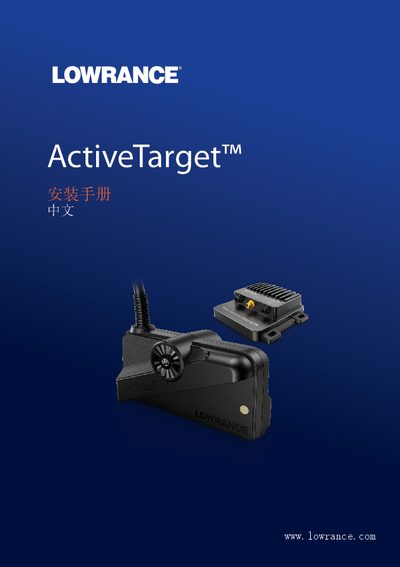

This manual provides installation instructions for the Lowrance ActiveTarget sonar module and transducer, including wiring diagrams and technical…
The Lowrance ActiveTarget™ Installation Guide details the procedures for installing the sonar module and transducer on a trolling motor shaft or motor. It covers selecting an appropriate location, mounting hardware requirements, and specific steps for securing the unit to ensure proper ventilation and structural integrity.
The guide also provides comprehensive wiring instructions, including connections for Ethernet, power (12V/24V DC), and grounding. Technical specifications for both the sonar module and transducer are listed at the end of the document. This manual is written in Chinese.
| Storage Temperature (Sonar Module) | -30°C to +70°C (-22°F to +158°F) |
|---|---|
| Operating Voltage | 12/24V DC |
| Fuse Rating | 3 A |
| Weight (Sonar Module) | 1.86 kg (4.12 lbs) |
| Cable Length | 7.62 m (25 ft) |
The device is designed to be powered by a 12 or 24V DC power system.
Yes, it can be mounted on the shaft or the lower unit of the trolling motor.
