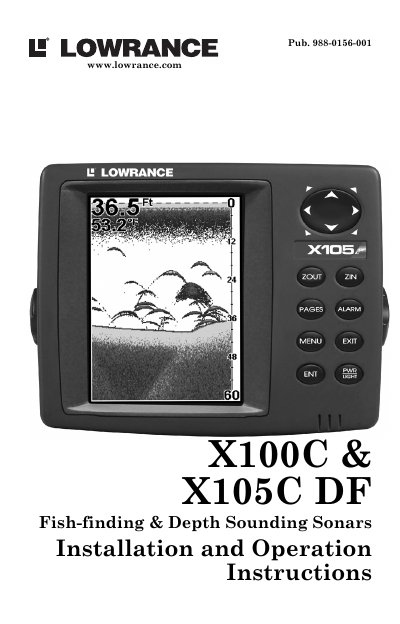

Lowrance X100C X105C DF Fish-finding Depth Sounding Sonars Installation and Operation Instructions

This manual describes the installation and operation of the X100C, X105C DF fish-finding and depth sounding sonars.

Brand: Lowrance
Category: Other device
Document type: User Manual
Language: English
Pages: 88
File format: PDF
File size: 2.2 MB
Published: 11 July, 2012
Updated: 30 September, 2023
MD5 checksum: 6189E27871B2A5D0E9B499C9A2618AC1
PDF: Lowrance X100C X105C DF Fish-finding Depth Sounding Sonars Installation and Operation Instructions PDF

About this manual

This manual provides instructions for installing and operating Lowrance X100C and X105C DF fish-finding and depth sounding sonars. It covers transducer installation, power connections, and mounting options for both shoot-thru-hull and transom configurations. The guide also details the operation of the unit's digital display, including interpreting sonar charts, fish symbols, and various display options like ColorLine and FlashGraf.

What's inside

Capabilities and Specifications
How Sonar Works
Transducer Installation
Power Connections
Basic Sonar Operation
Sonar Options & Other Features
Sonar Troubleshooting

Specifications

Display Resolution	320 pixels (vert.) x 240 pixel (horiz.)
Input Power	10 to 15 volts DC
X105C DF Frequency	50/200 kHz
X100C Frequency	200 kHz
X105C DF Max Depth	2,500 feet (762 meters)
X100C Max Depth	900 feet (274 meters)

Frequently asked questions

What is the storage temperature range for the unit?

The storage temperature range is from -4 degrees to +167 degrees Fahrenheit (-20 degrees to +75 degrees Celsius).

Does the X105C DF come with a temperature sensor?

Yes, a dual-frequency Skimmer transducer with a built-in temperature sensor is packed with the X105C DF.

Download PDF (2.2 MB)
