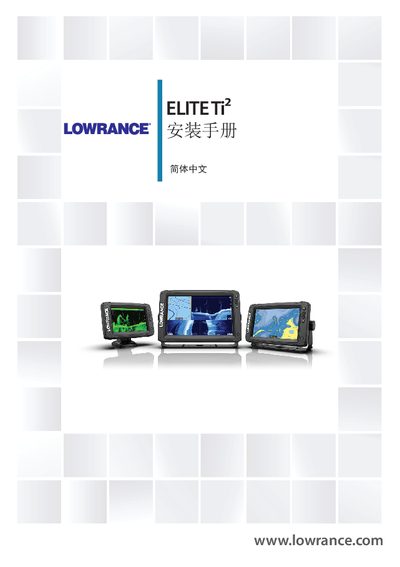

Lowrance ELITE Ti² Installation Manual

This manual provides installation instructions, wiring guidelines, and software setup for the Lowrance ELITE Ti² marine electronics device.

Brand: Lowrance
Document type: Installation Guide
Language: Chinese
Pages: 54
File format: PDF
File size: 2.7 MB
Published: 13 October, 2026
Updated: 13 October, 2026
MD5 checksum: 915F95DEC2C1C215D44C4BD8D9B5E358
PDF: Lowrance ELITE Ti² Installation Manual PDF

About this manual

This document is an installation guide for the Lowrance ELITE Ti² series of marine electronics devices. It covers unboxing, hardware connections, mounting options including quick-release and U-bracket styles, and electrical wiring requirements. The guide also details software configuration steps for first-time setup and system calibration. This manual is written in Chinese.

What's inside

Introduction
Included Parts
Mounting
Wiring
Power and NMEA 0183
Sonar
NMEA 2000
Software Setup
System Settings
Technical Specifications

Specifications

Resolution	480 x 800
Brightness	>1200 nits
Power Voltage	12V DC (10 - 17V)
Operating Temperature	-15°C to +55°C
Waterproof Rating	IPX6 and IPX78

Frequently asked questions

What is the recommended fuse rating for a 12-inch device?

The recommended fuse rating is 10 A (12 V DC) / 5 A (24 V DC).

Can the device operate on a 24V system?

Yes, the power voltage range is 10 - 17V DC for standard operation, but fuse ratings differ for 24V systems.

What is the maximum power consumption of a 9-inch device?

The maximum power consumption is 12W at 13.8V DC.
